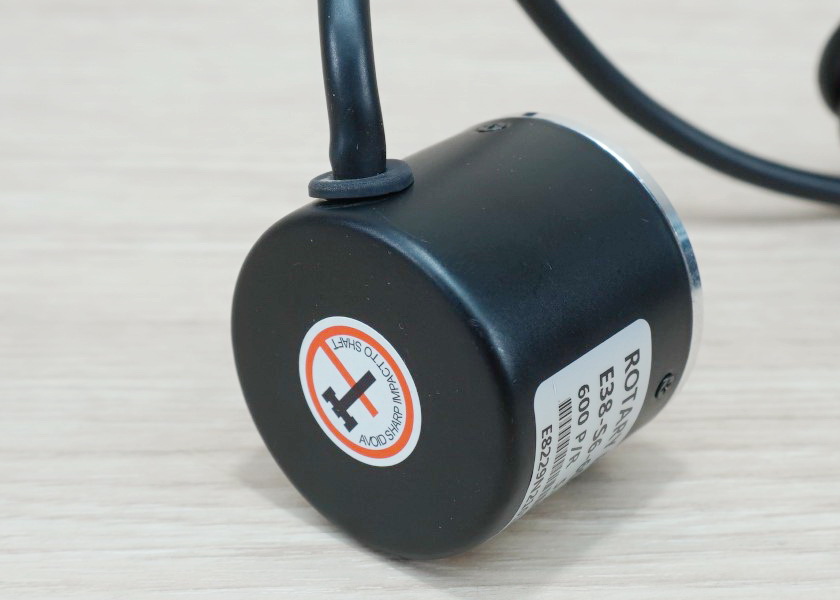

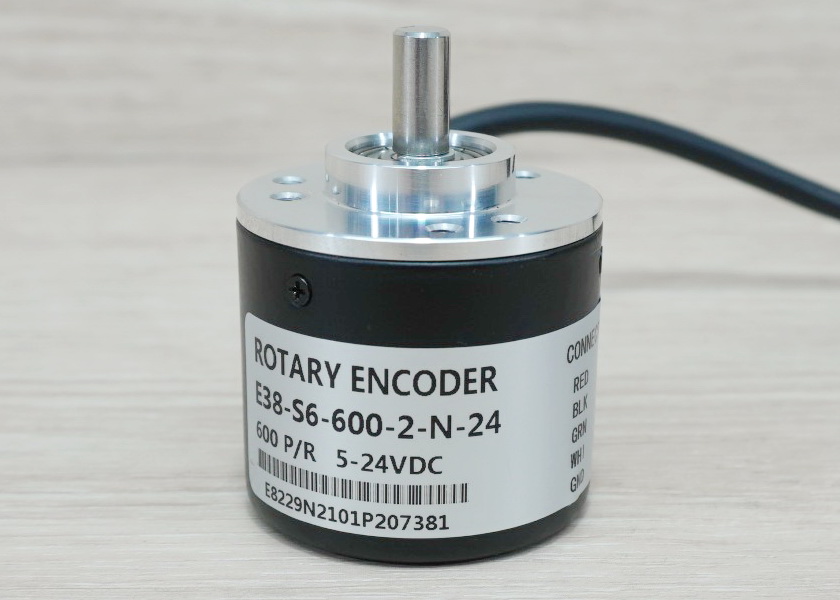

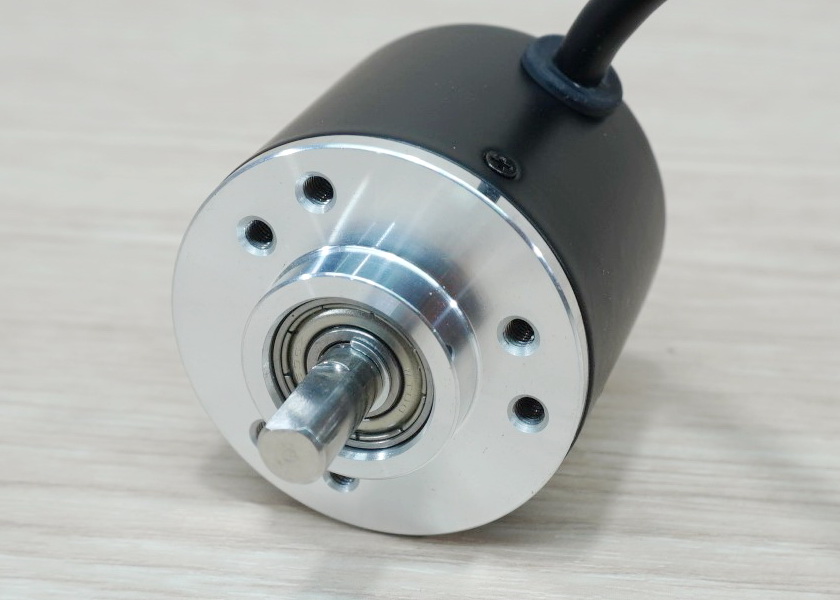

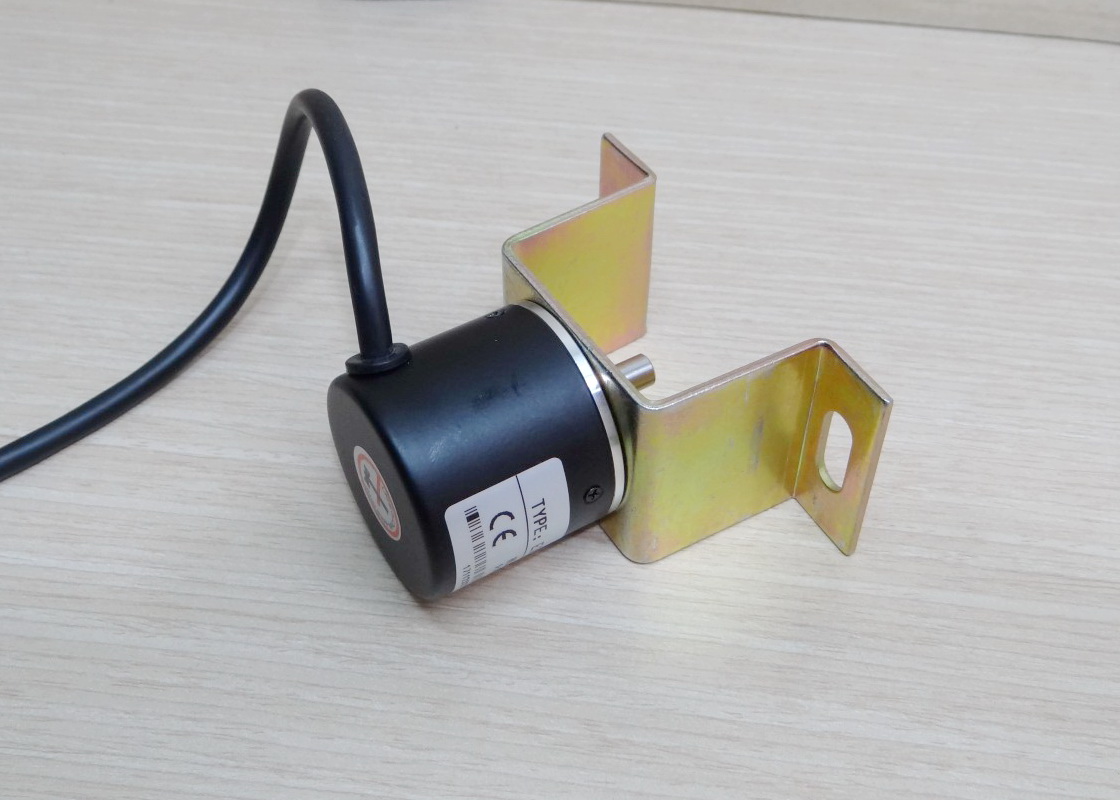

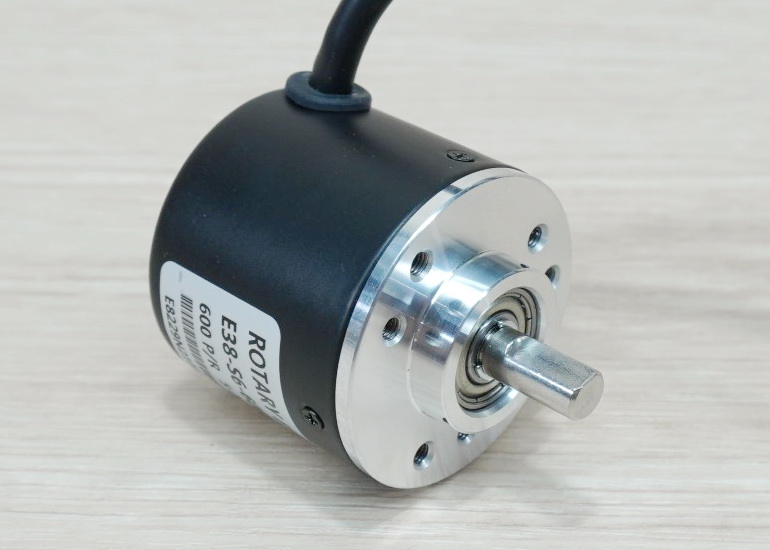

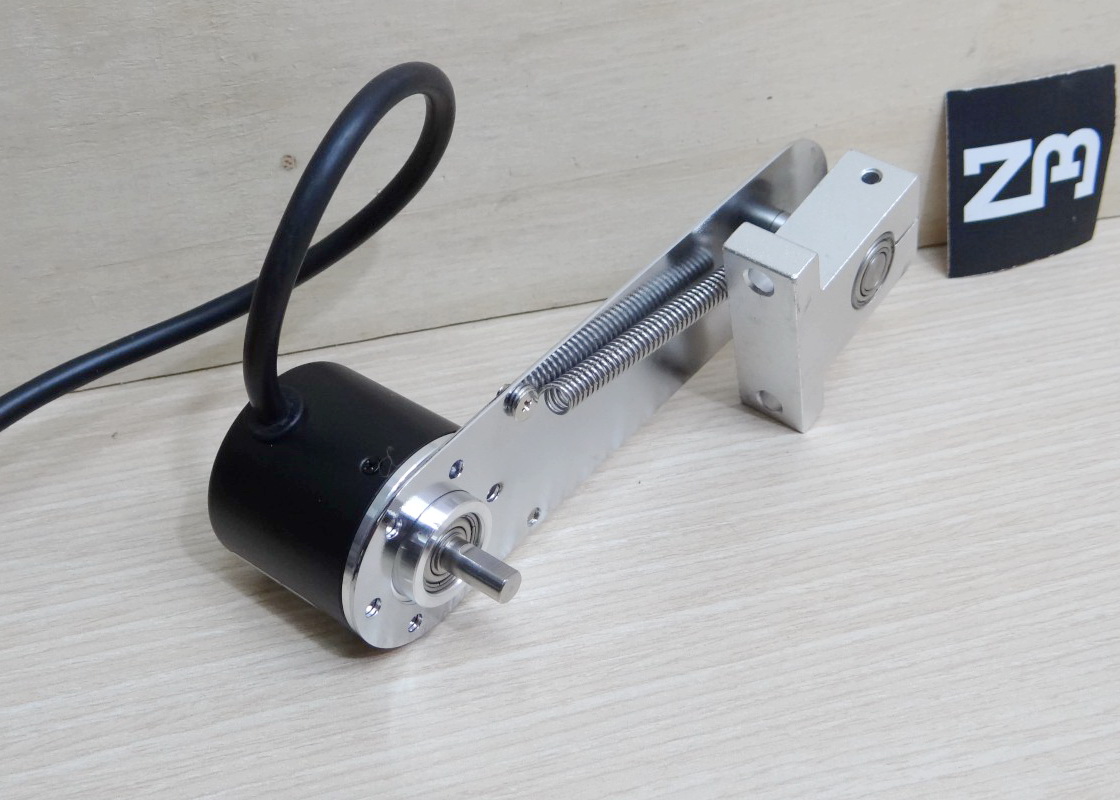

600P/R Incremental Rotary Encoder (E38-S6-600-2-N-24) Shaft 6mm, Cable 2M, NPN, 5-24VDC

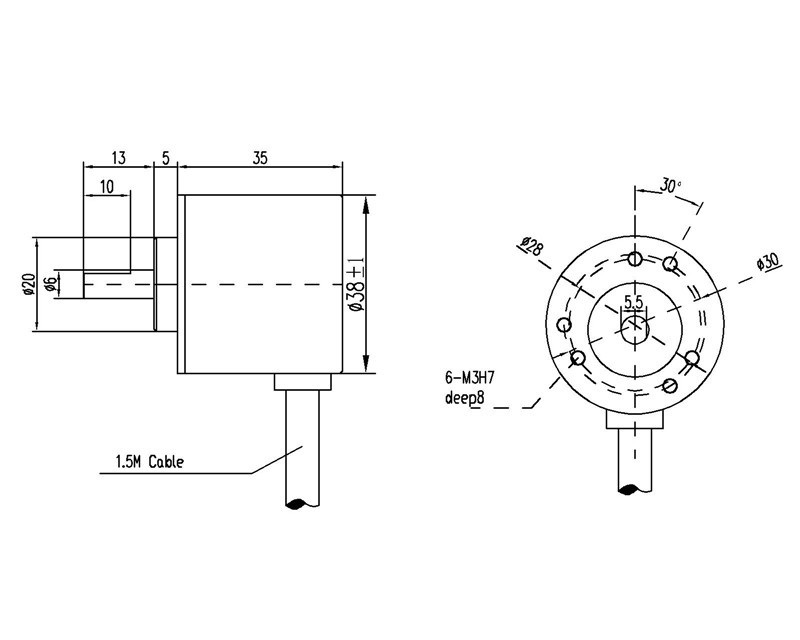

Specifications

Features:
- Light weight and small size.
- By rotating the grating disk and optocoupler direction which generate counting pulses.
- Easy installation.
- Fits for measuring the rotational speed of the object , angle, acceleration, and length measurement.

Output:

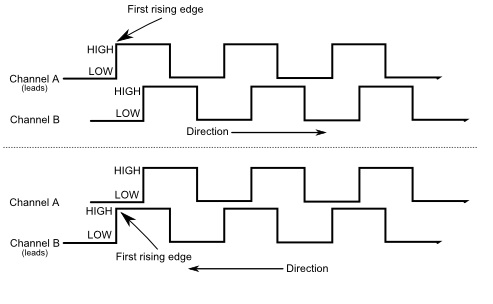

AB two-phase quadrature output rectangular pulse ,the circuit output is NPN open collector output type ,the output of this type can and with internal pull-up resistor is directly connected MCU or PLC ,such as 51 single or for Mitsubishi PLC (PLC input mode should be connected to 0V switch function ).

Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope ( open collector output without pull-up resistor when there is no voltage output ) If you want the oscilloscope in AB two-phase output with two pull-up resistors.

Fitment:
Suitable for a variety of intelligent control displacement measurement ,automatic fixed-length automatic guillotine paper machine,steel cut length control ,civilian measured height human scale,students racing robots.

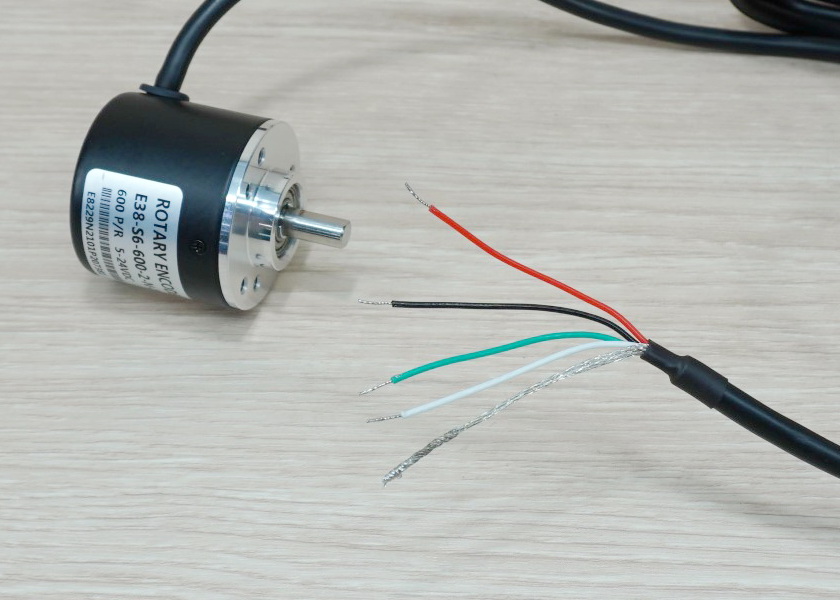

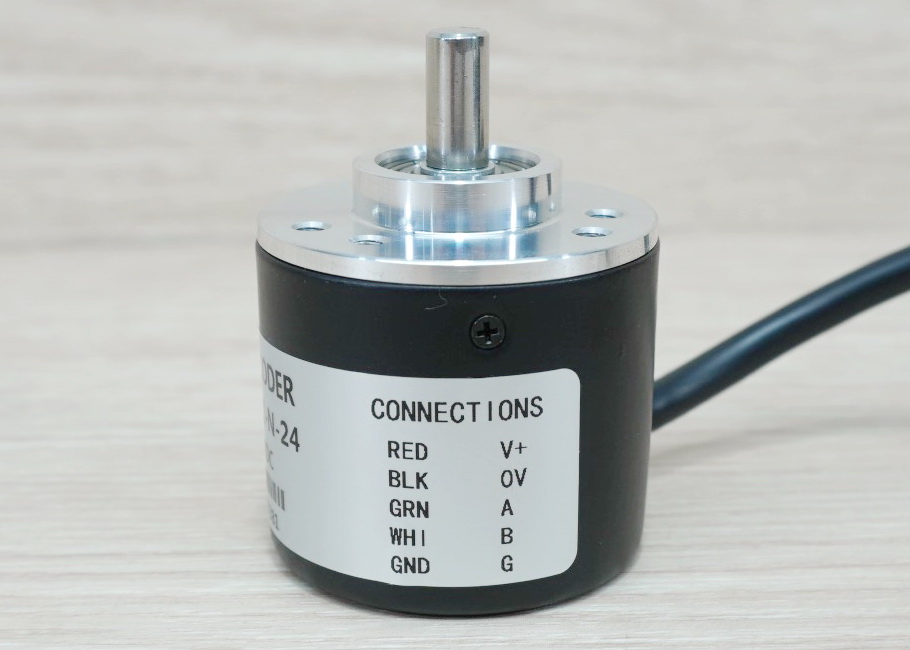

Wiring Output : A phase, B phase, Vcc positive supply, V0, the shield wire.

Connection:

Note: AB two -phase outputs must not be connected directly to VCC, otherwise, they will burn the output transistor.


ตัวอย่างการอ่านค่า ::::::

ตัวอย่างการใช้งานควบคุมสเตปเปอร์มอเตอร์ ::::::
