| รหัสสินค้า | A1443 |
| หมวดหมู่ | Driver / CNC Controller / Microstep Driver |
| ราคาปกติ | |
| ลดเหลือ | 478.00 บาท |
| น้ำหนัก | 243 กรัม |
| ยี่ห้อ | Jiawen |
| รุ่น | ฝาครอบพลาสติกดำ |
| สถานะสินค้า | พร้อมส่ง |
| เข้าร่วมโปรโมชั่น | ส่งฟรี |
| คงเหลือ | 15 ชิ้น |
| จำนวน | ชิ้น |

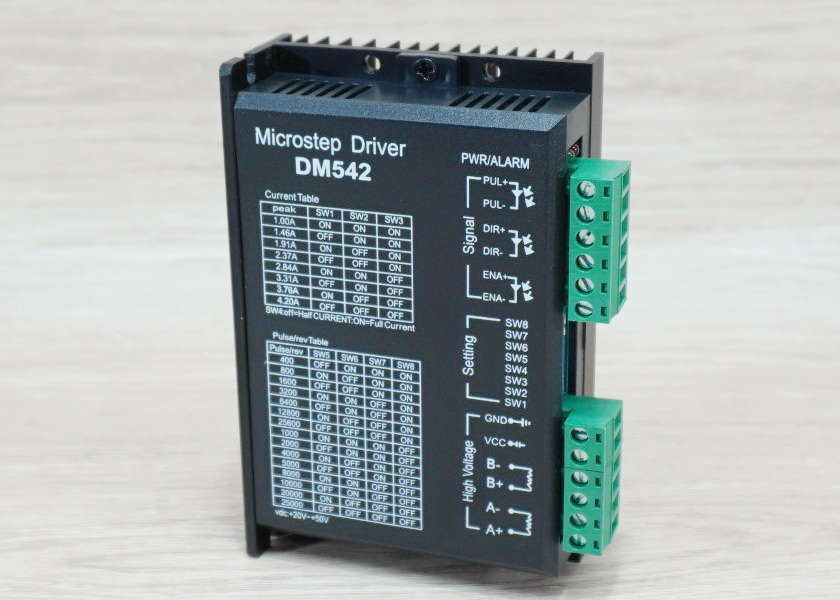

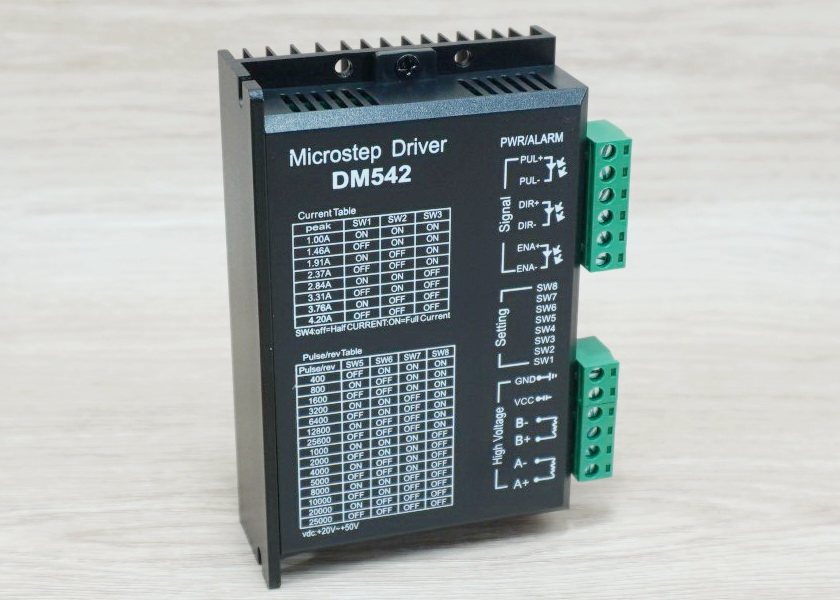

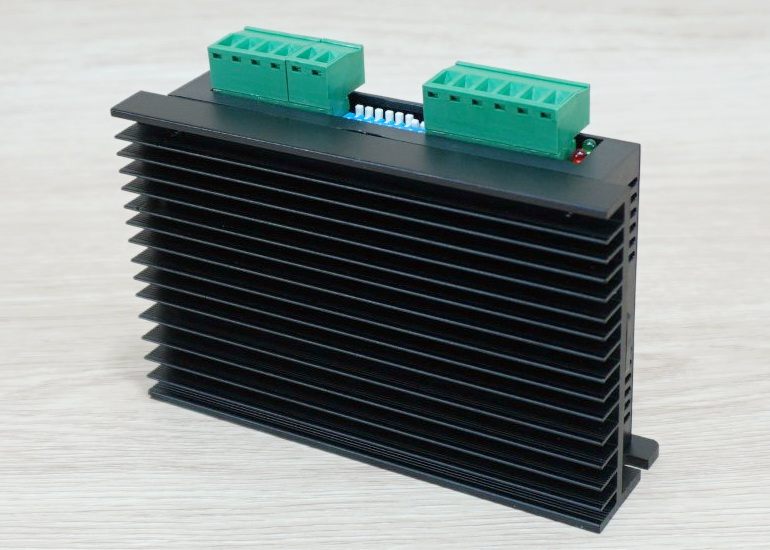

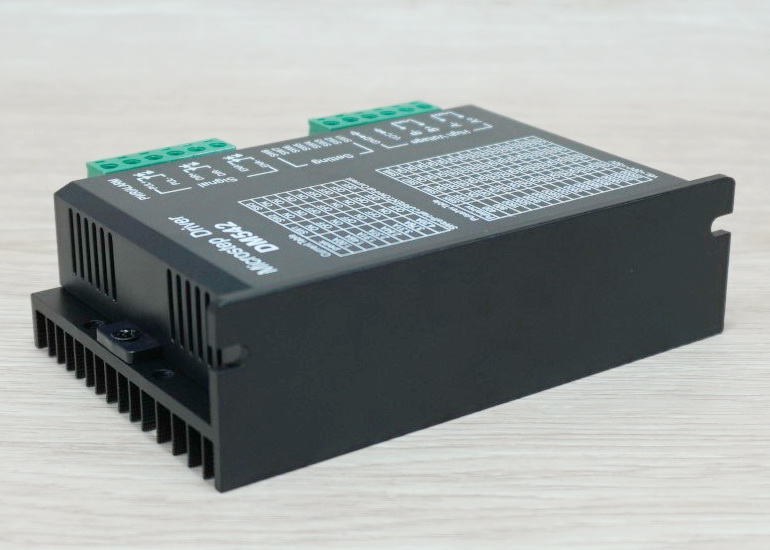

DM542 is a professional digital two-phase hybrid stepping motor driver, which is suitable for various brands at home and abroad. The 4-phase, 6-wire and 8-wire two-phase hybrid stepping with an outer diameter of 4.2A and below is 57-86mm. Motor. Suitable for all kinds of small and medium-sized automation equipment and instruments, such as: engraving machine, marking machine, cutting machine, laser phototypesetting, plotter, CNC machine tool, pick and place device. It works especially well in devices where users expect low-cost, low-noise, low- and medium-speed operation.

Features:
- Drive integrated overvoltage and overcurrent protection※Input signal light isolation

| cooling method | Naturally cooled or forced air cooled. |
| occasion |
Can not be placed next to other heat-generating equipment, to avoid dust, oil, corrosive gases, humidity For flammable gases and conductive dust, too large and strong earthquakes are prohibited. |
| humidity | 40-90%RH |
| shock | 10-55Hz/0.15mm |
| Storage temperature | -20-65℃ |
| weight | 0.25KG |
Current setting:

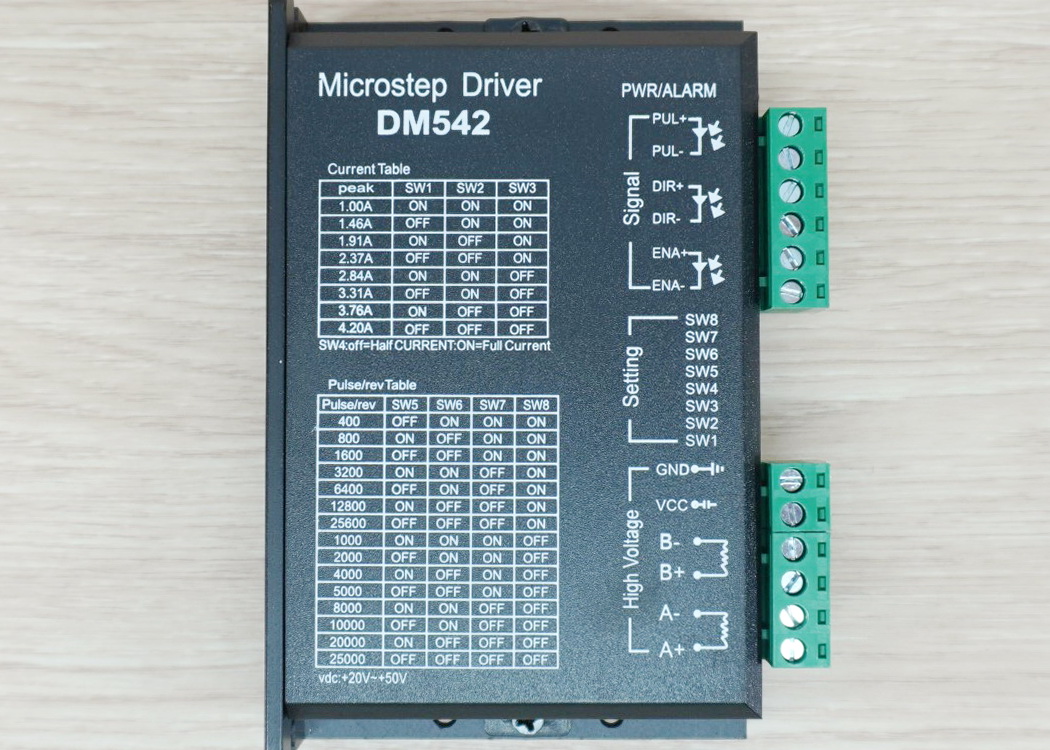

Use SW1, SW2, SW3 three-position dial switch to set the running current, as shown in the following table:
| Running current | SW1 | SW2 | SW3 |
| 1.00A | ON | ON | ON |
| 1.46A | OFF | ON | ON |
| 1.91A | ON | OFF | ON |
| 2.37A | OFF | OFF | ON |
| 2.84A | ON | ON | OFF |
| 3.31A | OFF | ON | OFF |
| 3.76A | ON | OFF | OFF |
| 4.20A | OFF | OFF | OFF |
Set the standby current mode with a SW4 one-dial switch, as shown in the following table:
| SW4 | stand-by current |
| ON | Full flow |
| OFF | Half flow |
Subdivision setting:

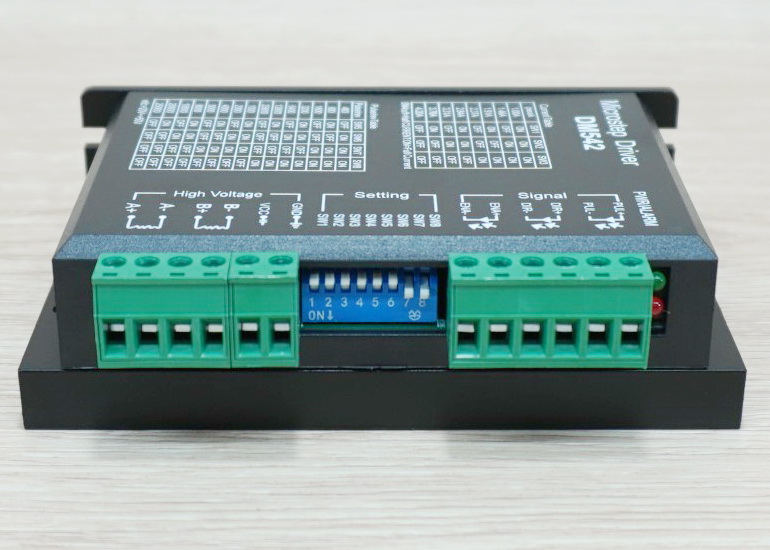

Use SW5, SW6, SW7, SW8 four-position dial switch to set the subdivision/pulse, as shown in the following table:
| Pulse/circle | SW5 | SW6 | SW7 | SW8 |
| 400 | OFF | ON | ON | ON |
| 800 | ON | OFF | ON | ON |
| 1600 | OFF | OFF | ON | ON |
| 3200 | ON | ON | OFF | ON |
| 6400 | OFF | ON | OFF | ON |
| 12800 | ON | OFF | OFF | ON |
| 25600 | OFF | OFF | OFF | ON |
| 1000 | ON | ON | ON | OFF |
| 2000 | OFF | ON | ON | OFF |
| 4000 | ON | OFF | ON | OFF |
| 5000 | OFF | OFF | ON | OFF |
| 8000 | ON | ON | OFF | OFF |
| 10000 | OFF | ON | OFF | OFF |
| 20000 | ON | OFF | OFF | OFF |
| 25000 | OFF | OFF | OFF | OFF |
Wiring diagram

Dimensions
