TB6600 (HY-DIV268N-5A) Stepper Motor Driver Peak 5A, 12-48 VDC [Aluminum Cover] 2-Phase

TB6600 (HY-DIV268N-5A) Stepper Motor Driver Peak 5A, 12-48 VDC [Aluminum Cover] 2-Phase

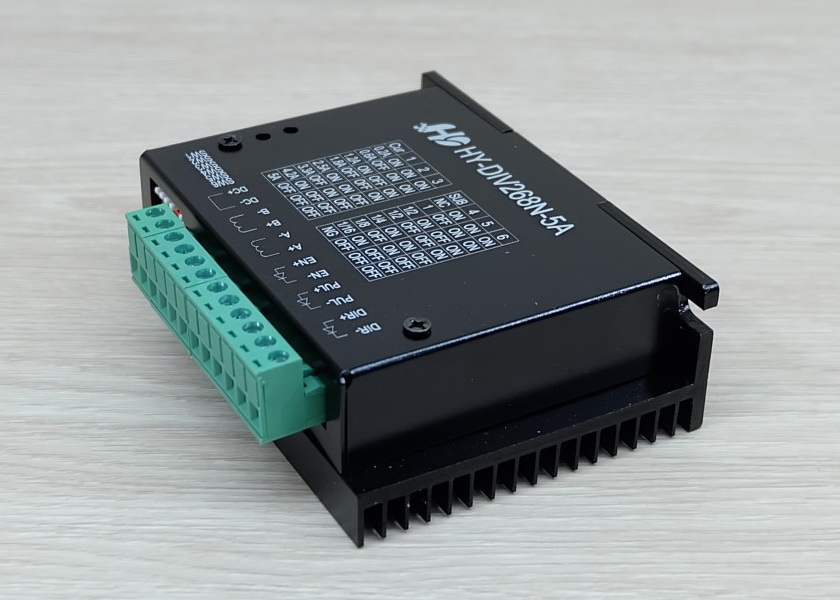

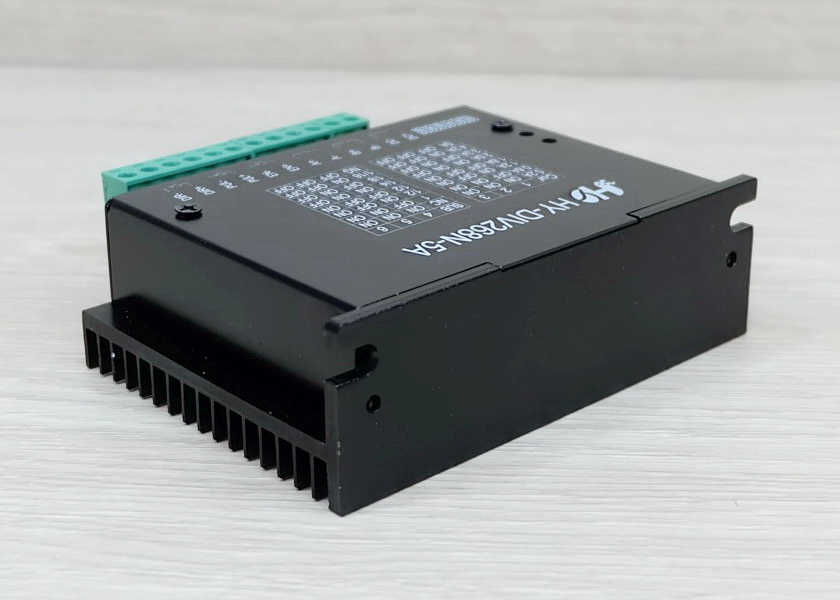

Description

- average current control, two-phase sinusoidal current drive output

- DC 12 ~ 48V power supply, the internal integration of 12V and 5V regulator

- optically isolated signal input / output

- overvoltage, undervoltage, overcurrent, and white short-circuit protection

- Input voltage DC 12 ~ 48V input

- The input current of 1 to 5 amps, select the drive a stepper motor.

- Output current of 0.2A ~ 5A

- Temperature Operating Temperature -10 to 45 C; Storage temperature -40C to 70C

- Humidity not condensing, not drops

- Gas prohibit combustible gas and conductive dust

วิธีการต่อใช้งานได้ที่นี่>>>> คลิ๊ก <<<<

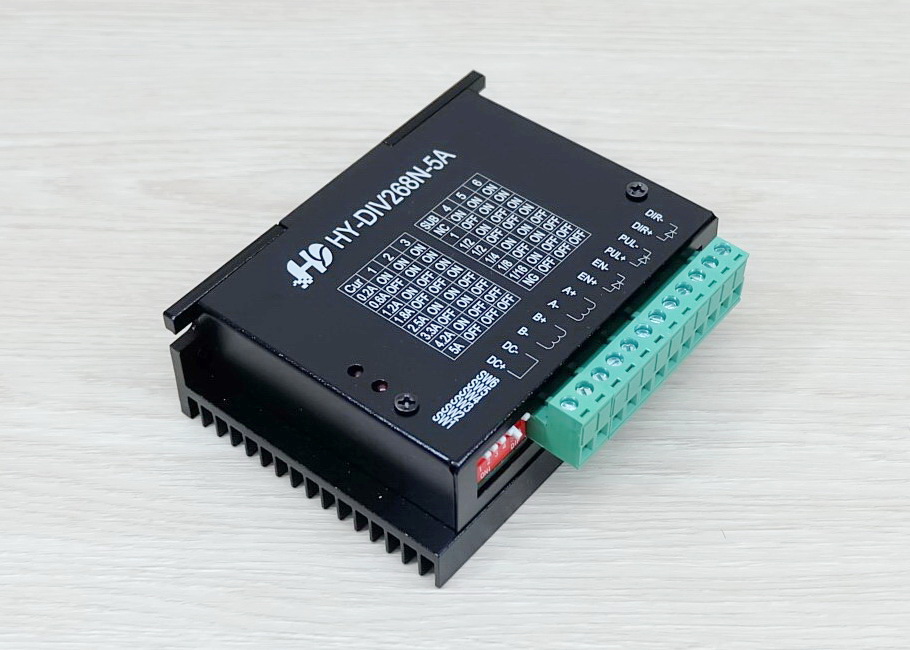

1. Terminal 1 DC+ In
2. Terminal 2 DC- In
3. Terminal 3 Stepper Motor B- Out
4. Terminal 4 Stepper Motor B+ Out
5. Terminal 5 Stepper Motor A- Out
6. Terminal 6 Stepper Motor A+ Out
7. Terminal 7 Enable Signal DC+ in
8. Terminal 8 Enable Signal DC- in
9. Terminal 9 Pulse (Step) Signal DC+ in
10. Terminal 10 Pulse (step) Signal DC- in
11. Terminal 11 Direction Signal DC+ in
12. Terminal 12 Direction Signal DC- in

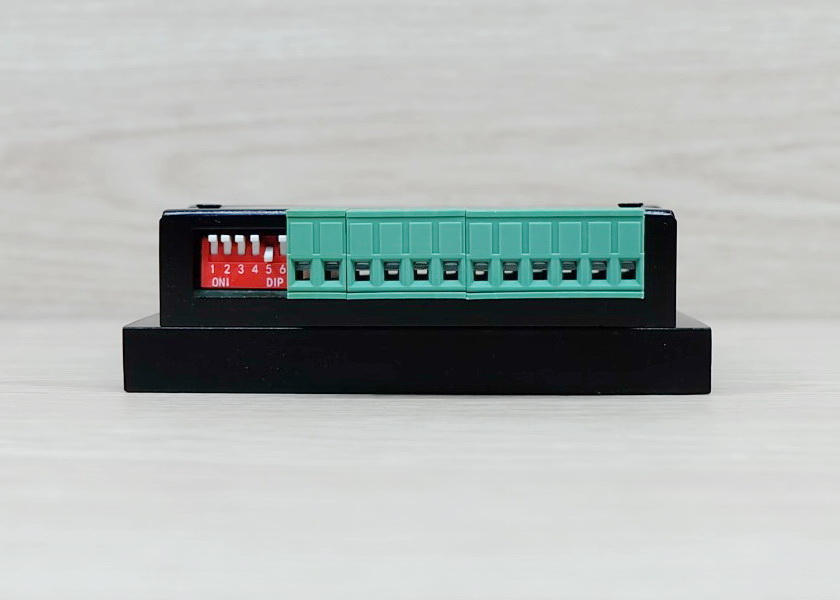

13. Dip Switch Block for current and resolution

    SW1 Current Setting
    SW2 Current Setting
    SW3 Current Setting
    SW4 Resolution Setting
    SW5 Resolution Setting
    SW6 Resolution Setting


14. Power LED
15. Activity/Error LED

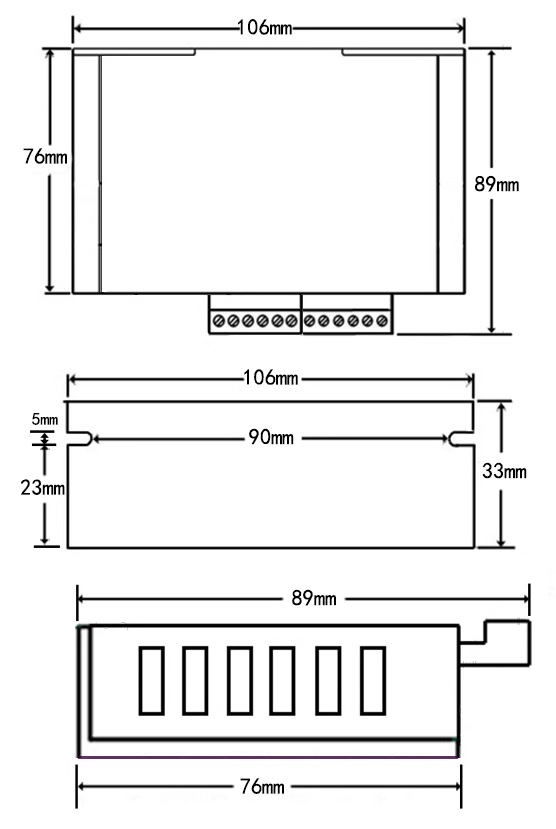

16. Mounting Plate
17. Mounting Points
18. Electronics cover

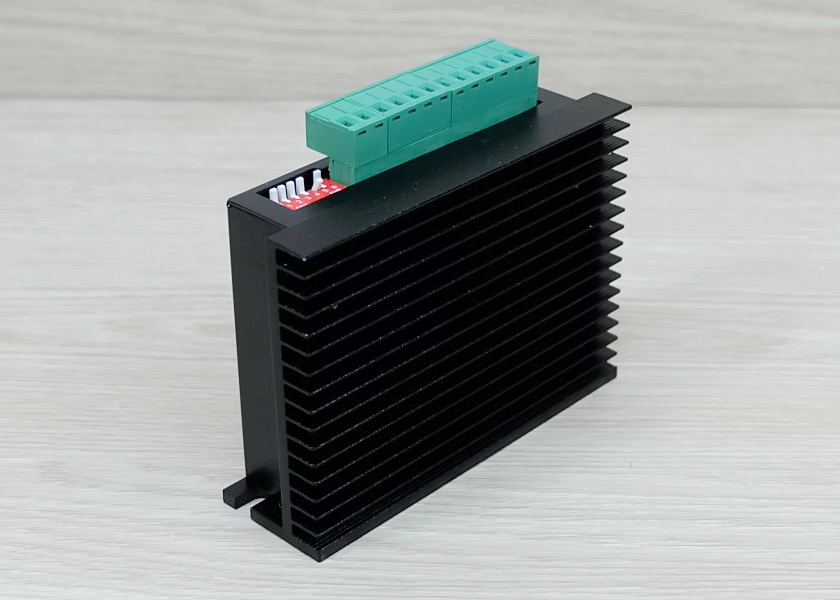

19. Heat sink

 ตัวอย่างการต่อใช้งาน วิธีการเลือกปรับค่าใช้งาน

ศึกษาเพิ่มเติมได้ที่ บทความ Maker Tutor - Online
