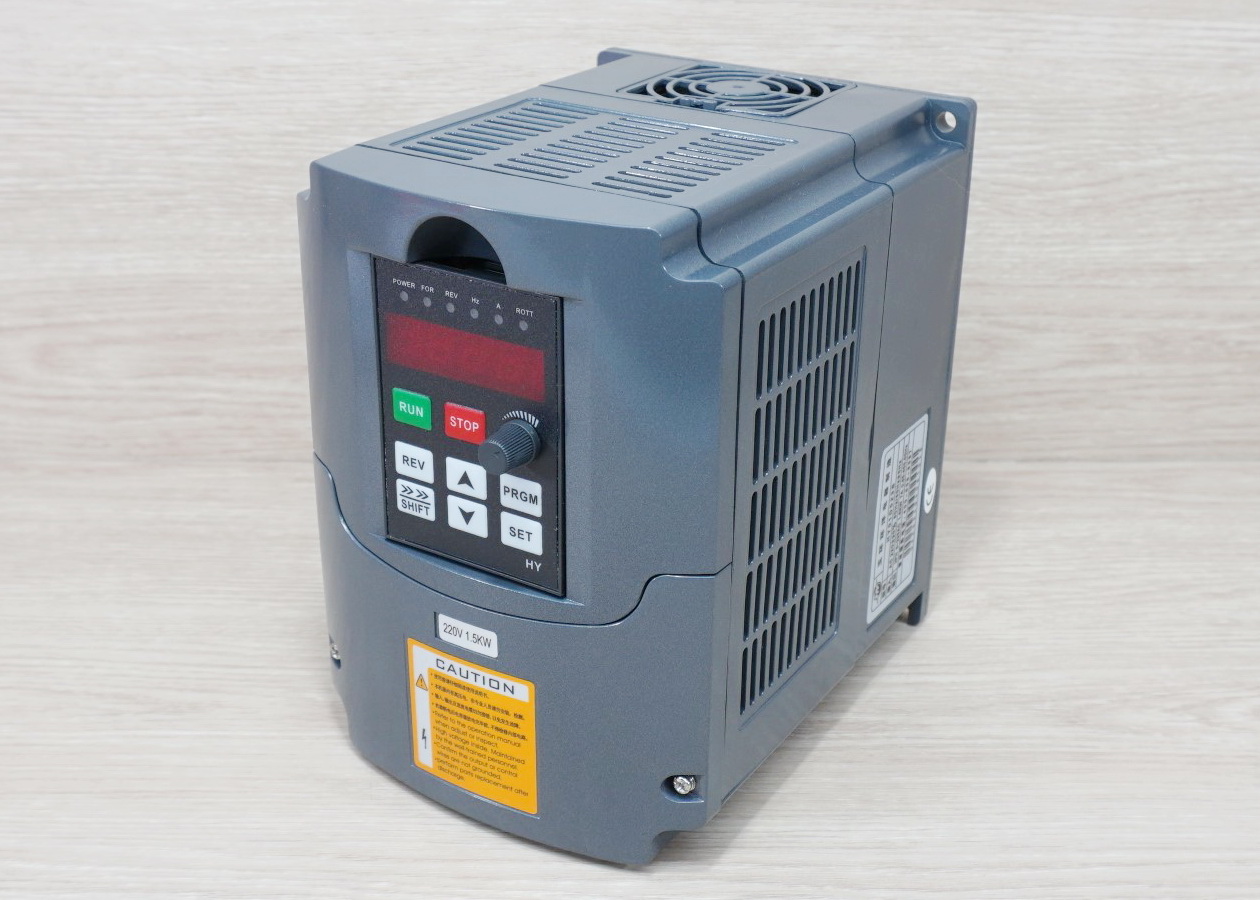

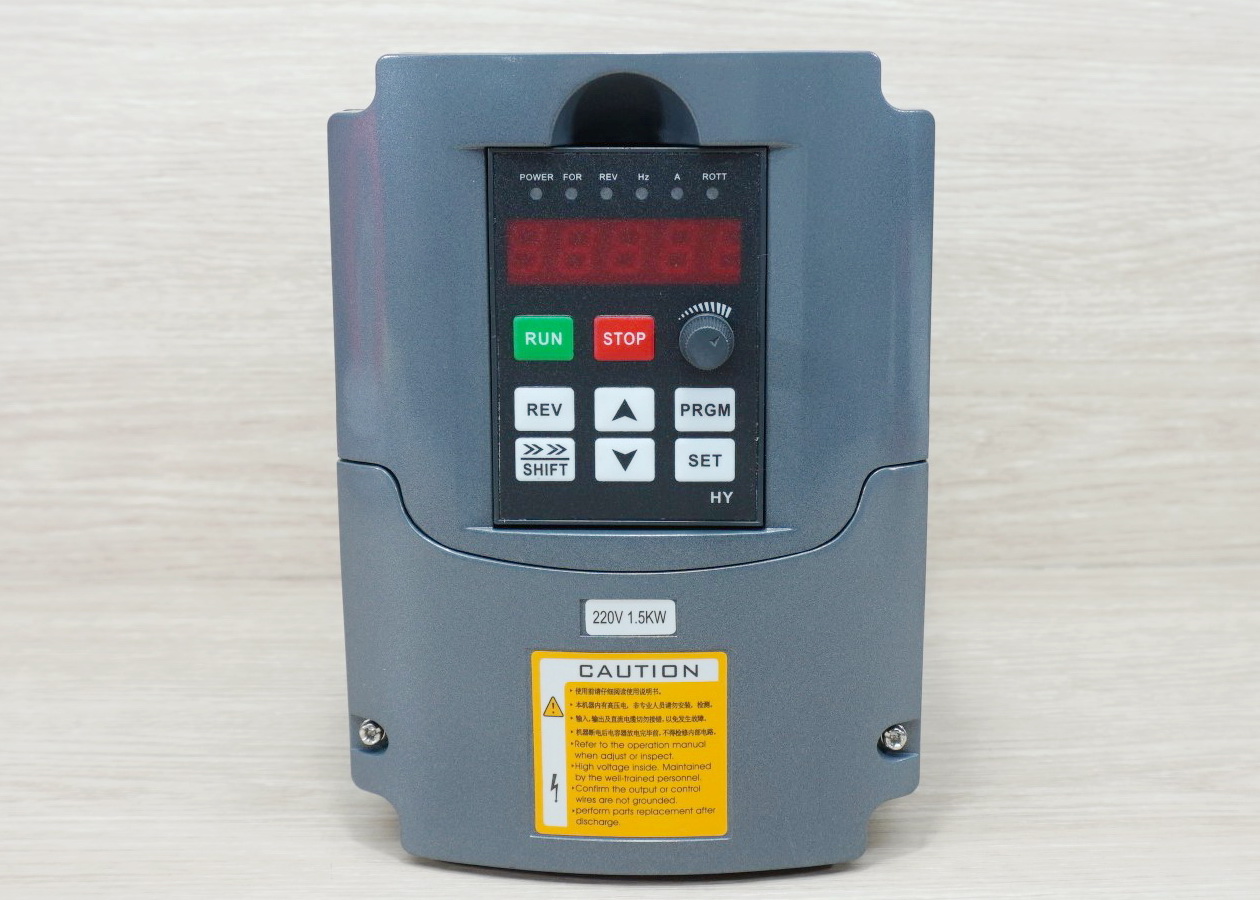

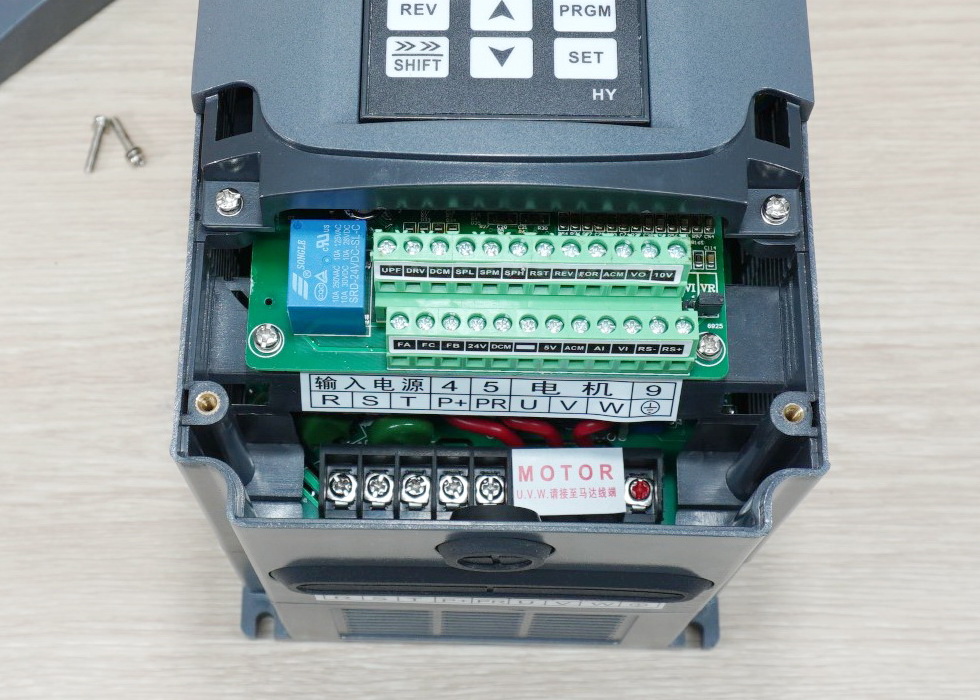

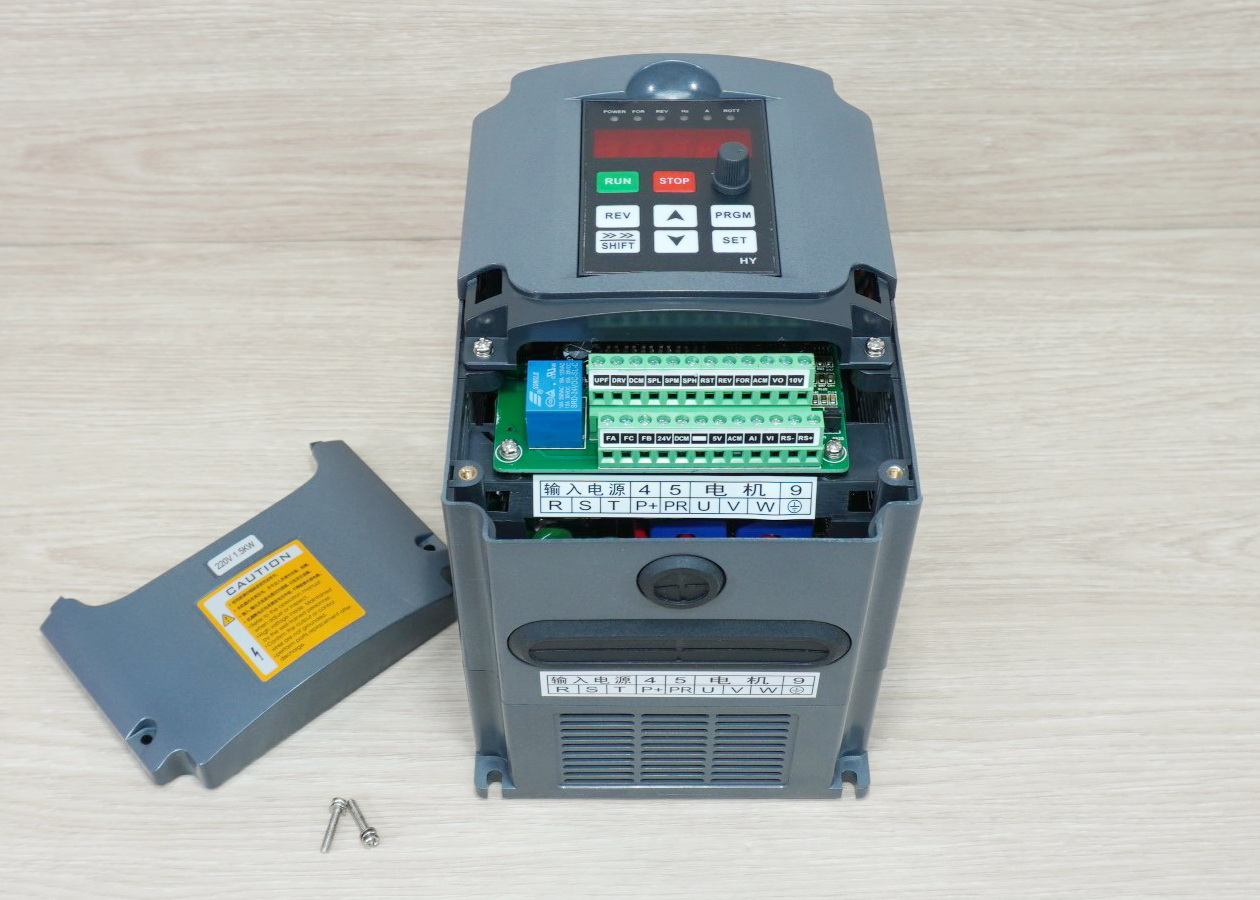

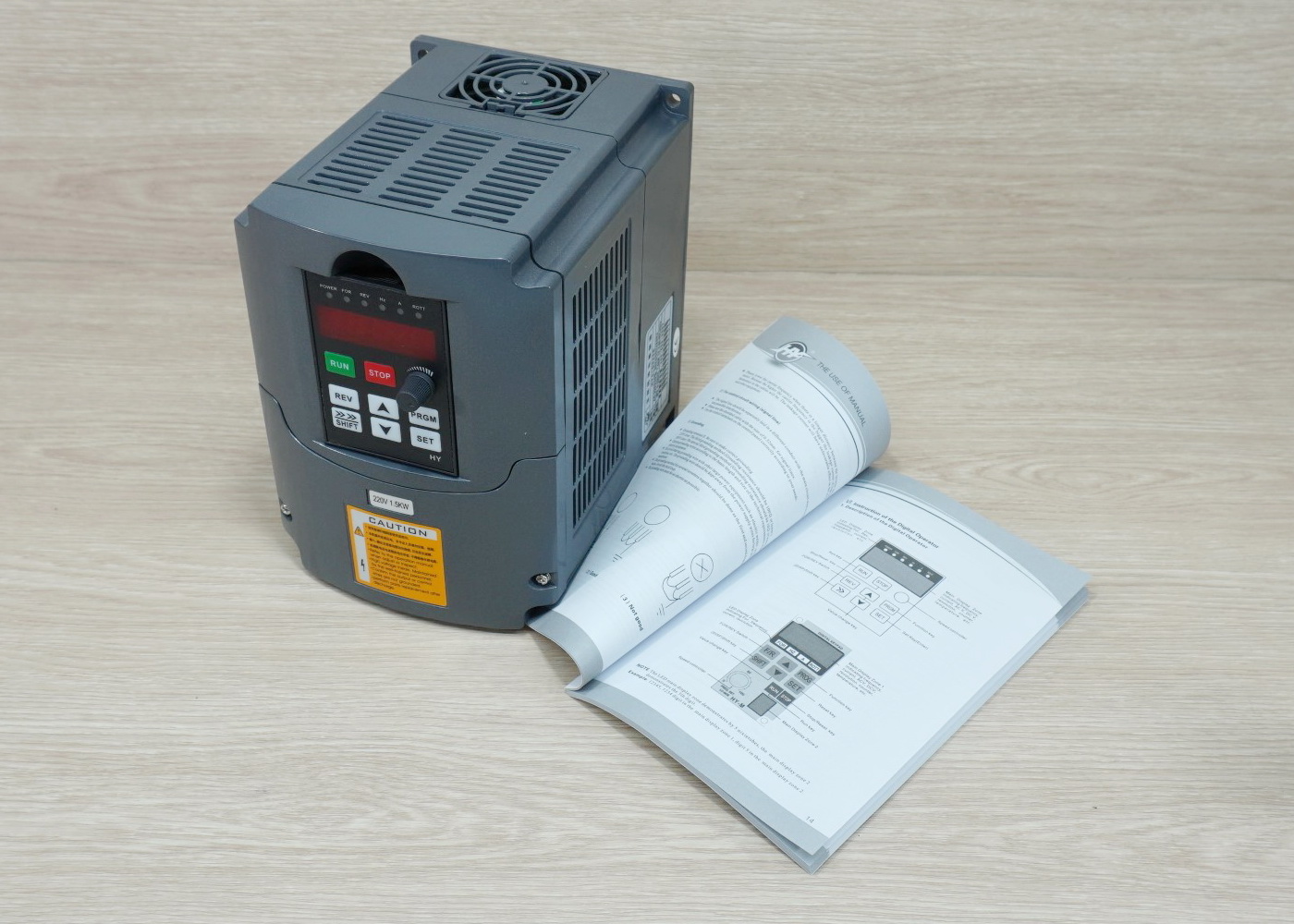

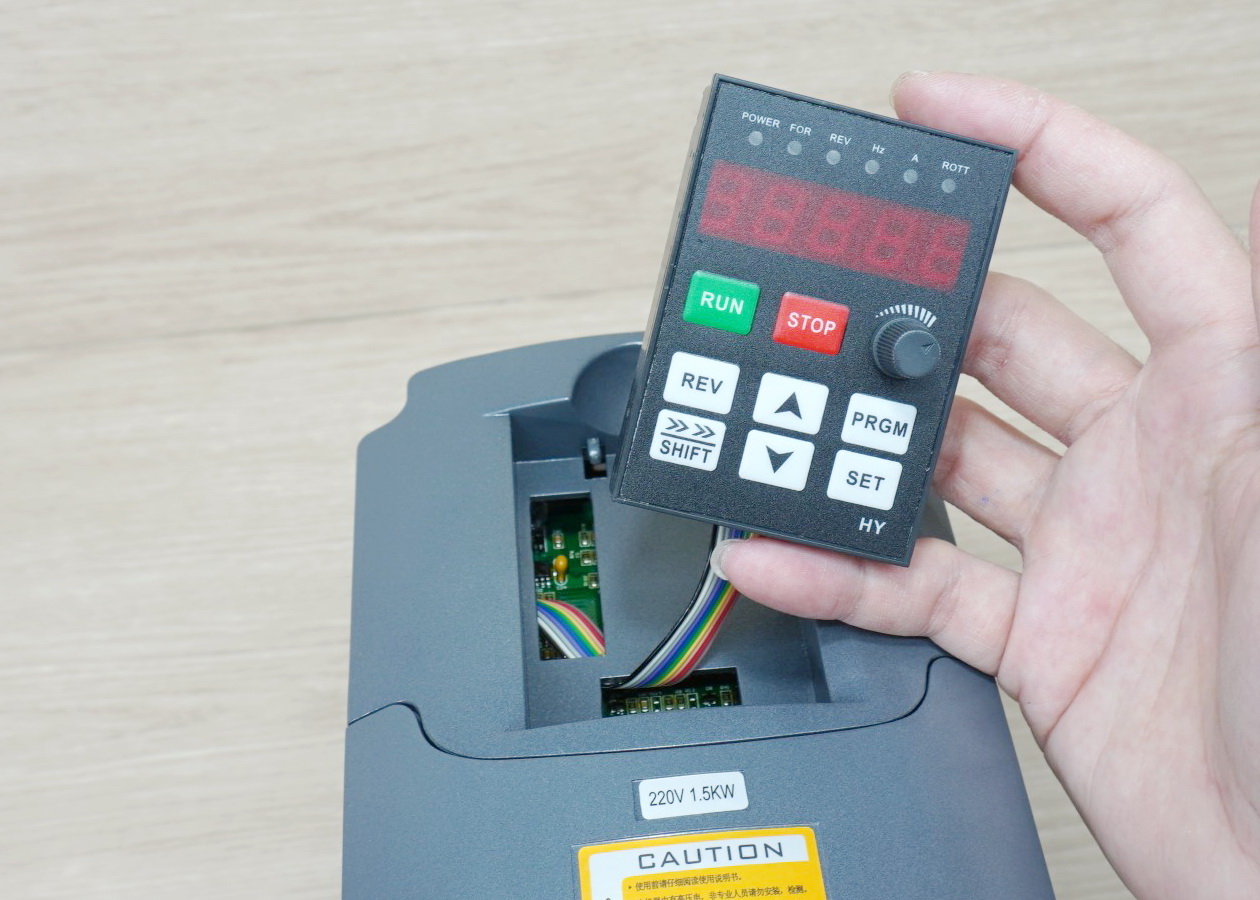

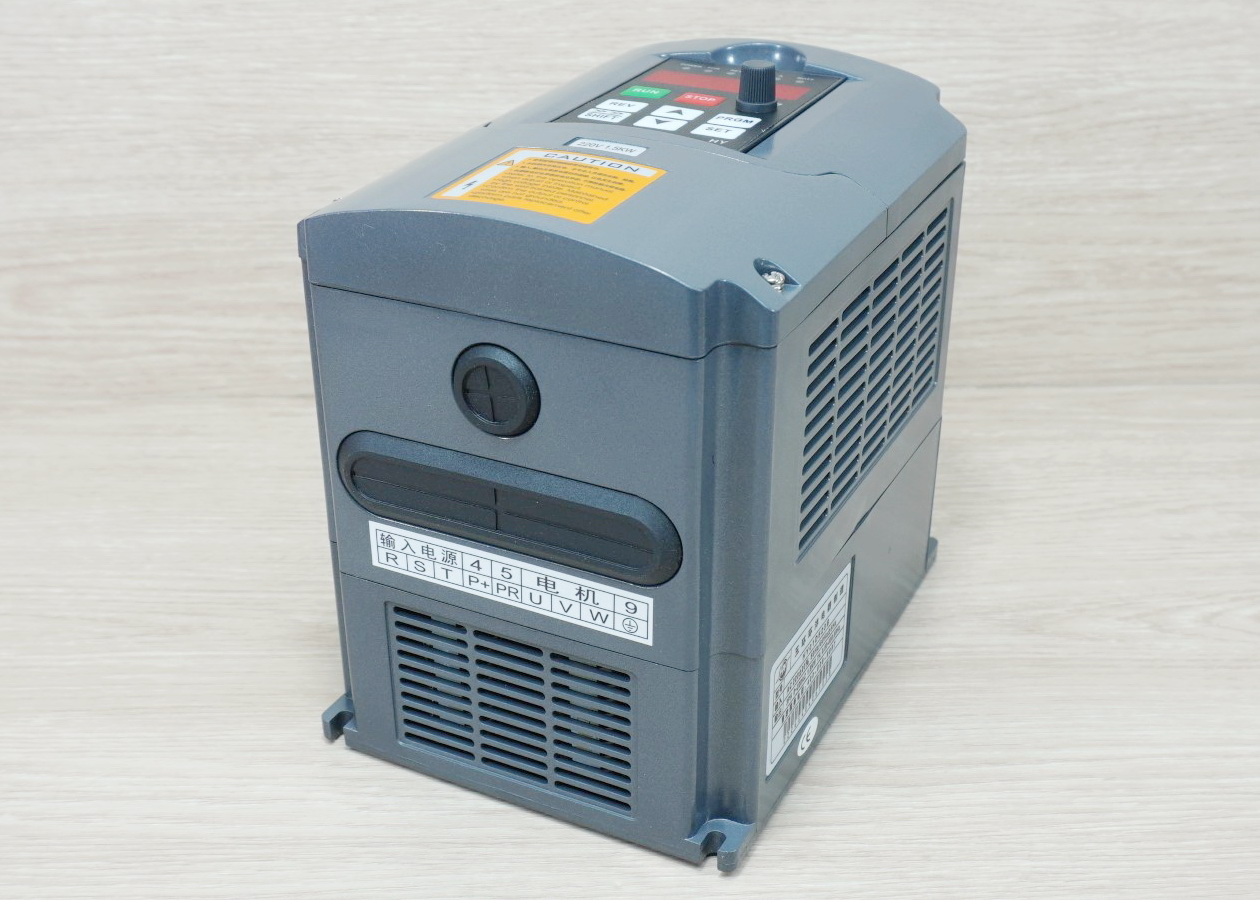

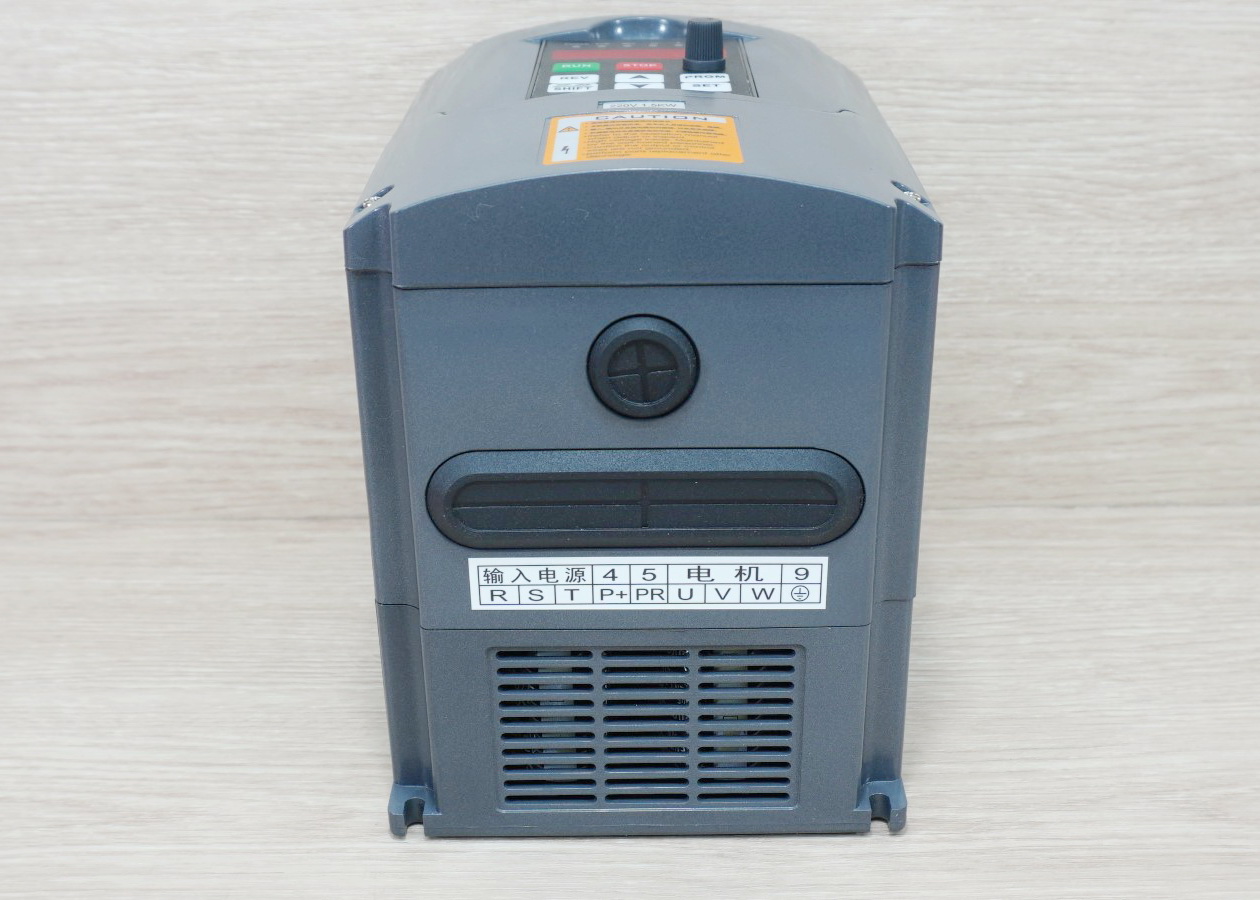

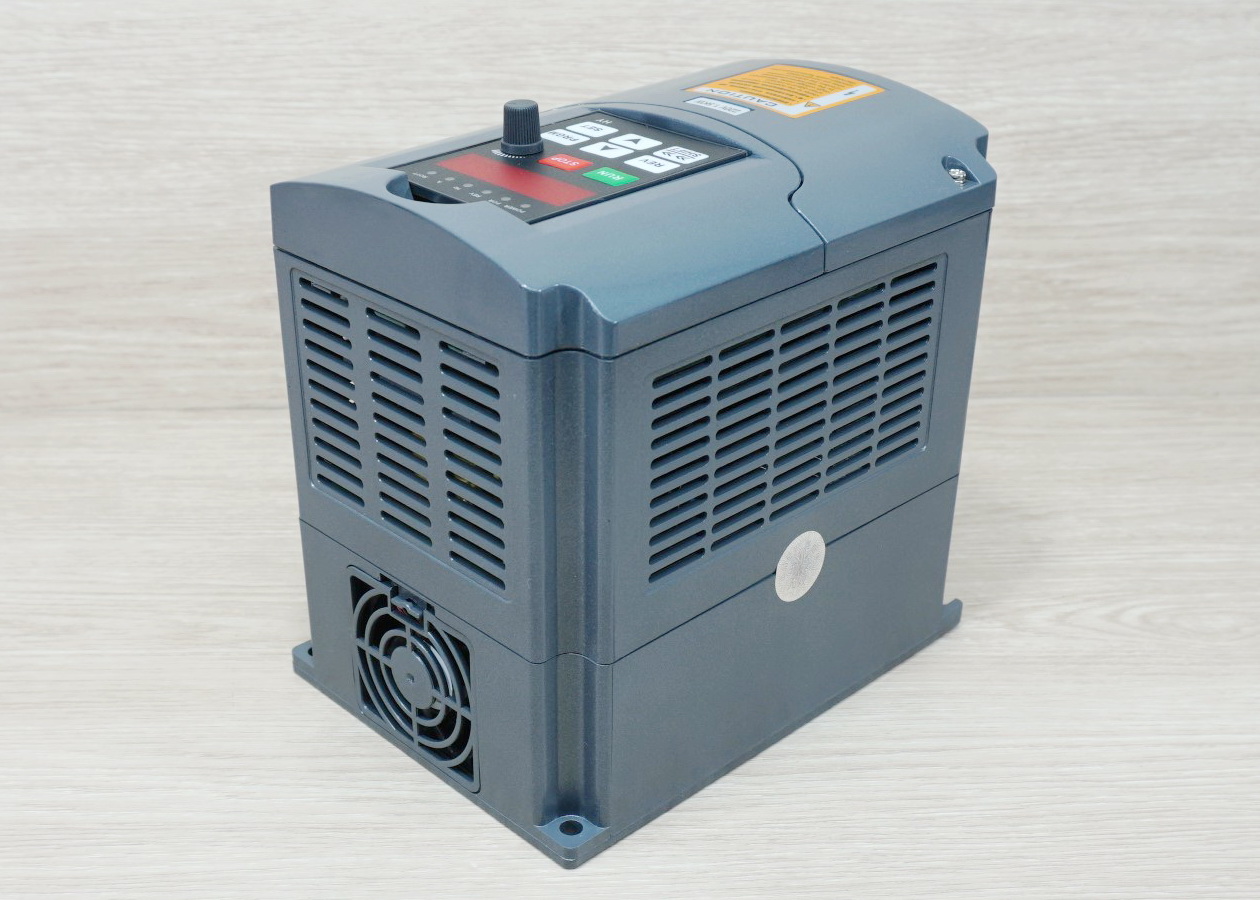

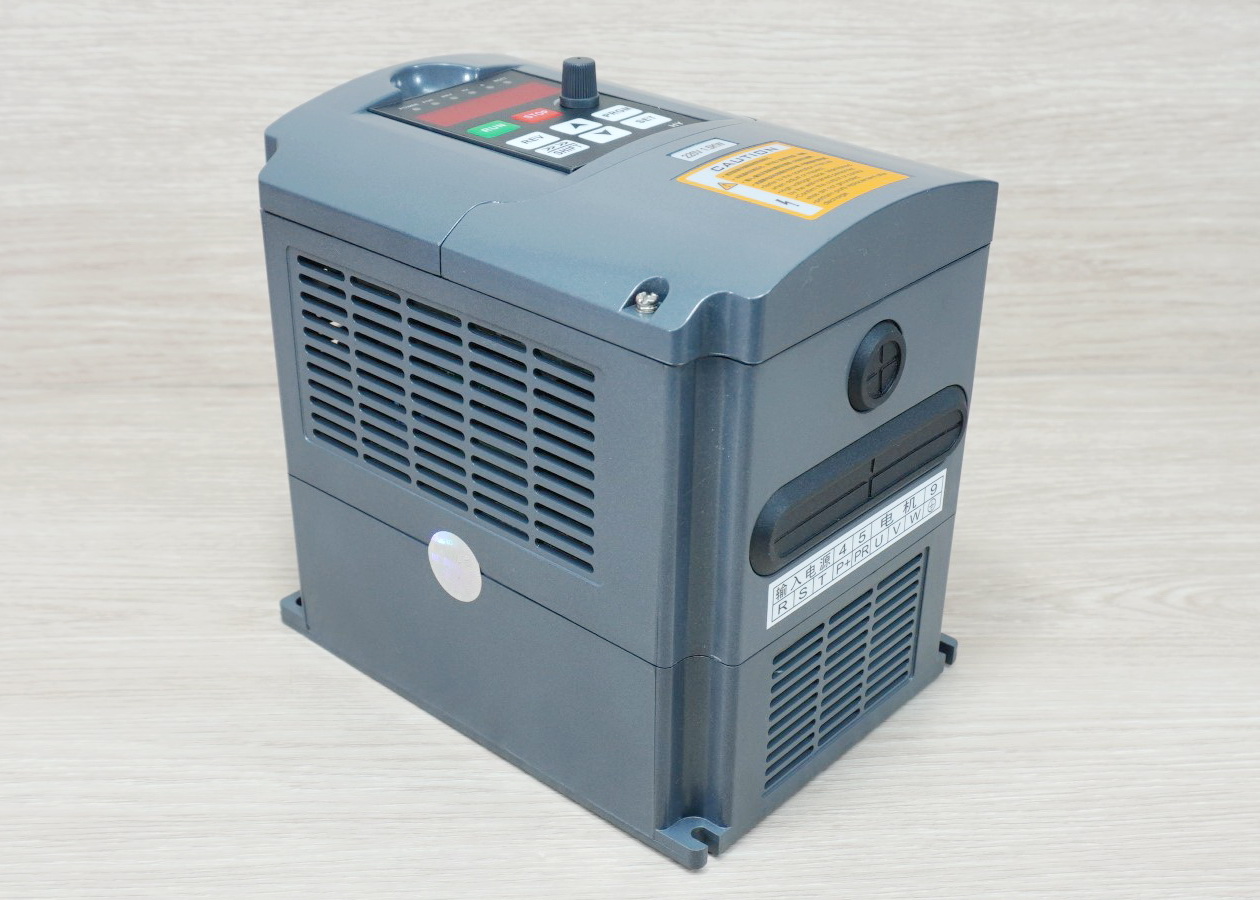

VFD Spindle Inverter 220V 1.5kw (HY01D523B)

VFD Spindle Inverter 220V 1.5kw (HY01D523B)

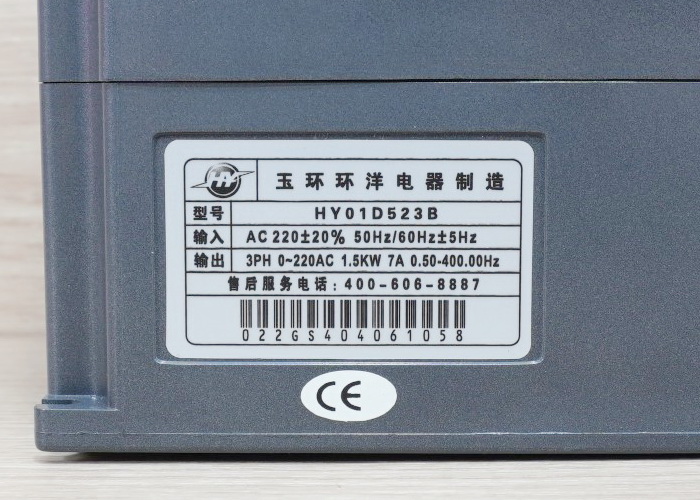

Basic Parameters:

Input Phase: 1 phase

Inverter Type: 220v

Input Voltage: 220V(+/-20%)

Input Frequency: 50 Hz(+/-5%)

Output Phase: 3 phase

Output Voltage: 220VAC 7A 1.5kW

Output Frequency: 0.5-400 Hz

Advantage:

Control Mode is SPWM,it is very easy to use and convenient

Protection functions are very strong,

Fin over-heat protection,

Overload protection,

Fuse protection,

Restart after instant stop,stall protection.

Powful function

Features:

PID control; advanced calculus PID closed-loop arithmetic, quick responding speed and high suitability;

Easy PLC function can realize 16 legs of speed and inverter control function;

RS485 communication port, adopting standard international MODBUS main circuit control;

With extremely strong anti-jamming capability

Low output ratting torque0.5HZ-150%, low speed running ability;

Carrier adjustable by 16KHZ, completely soundless working environment;

Broad voltage working area, normal running in 304V-456V;

Auto voltage regulation (AVR) technique, for ensuring the inverter load capability;

Various control technique by both synchronization and non-synchronization, dynamically realize fast starting without changing brakes;

With perfect error protection and short circuit starting protection capability;

Package Included:

1 pc x 1.5KW Invertor (AC 220V)
